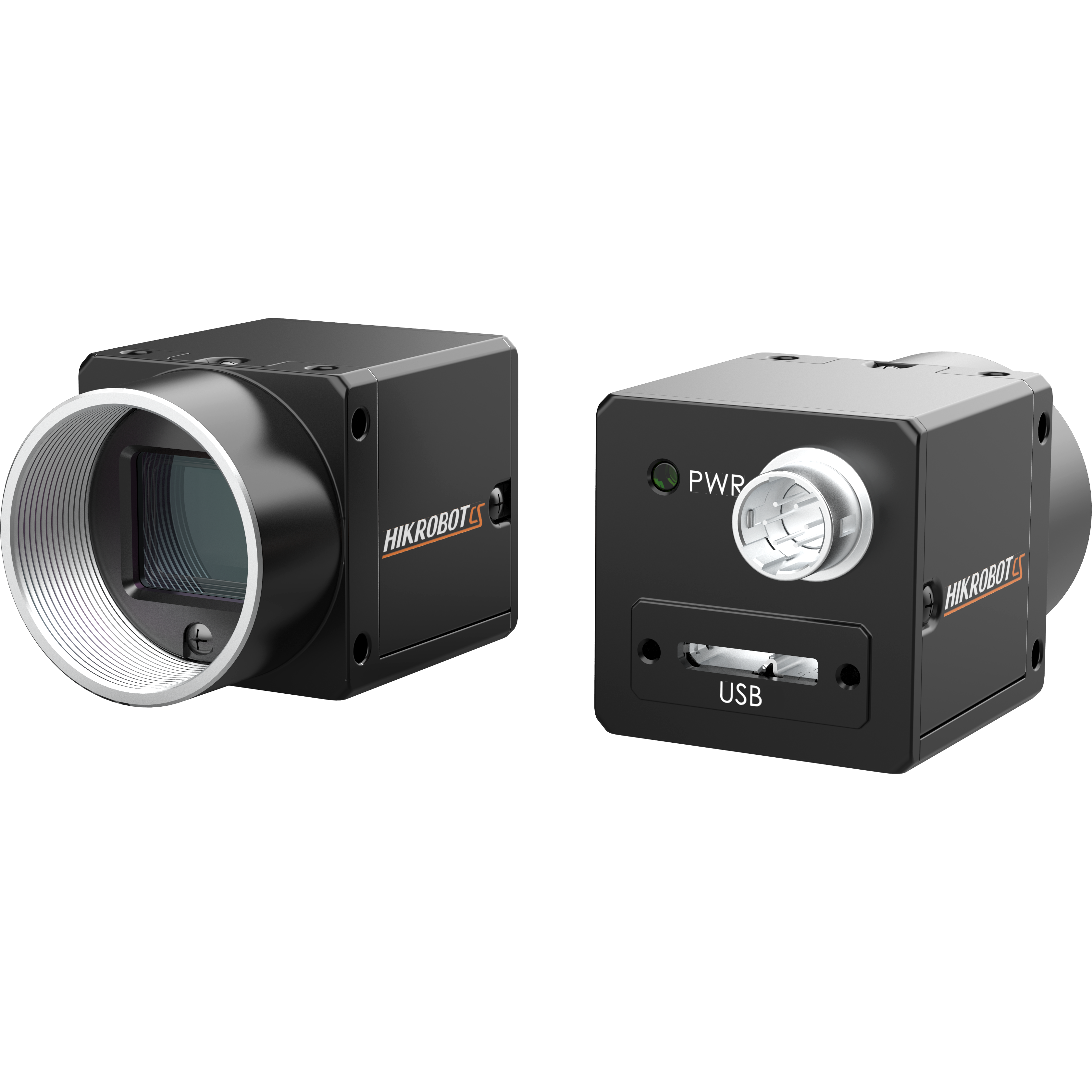

0.4MP Area Scan Camera, USB3.0, IMX287, 2nd Gen., Mono
Key Feature
Adopts brand new design to reduce power consumption.
Supports sequencer, contrast ratio, white balance, Gamma correction, etc.
Supports hardware trigger, software trigger, free run, etc.
Compact design with mounting holes on panels for flexible mounting from 4 sides.
Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Dimension
Specifications
| Model | Product Model | MV-CS004-10UM |
| Type | 0.4MP Area Scan Camera, USB3.0, IMX287, 2nd Gen., Mono | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX287 | |
| Pixel size | 6.9 μm × 6.9 μm | |
| Sensor size | 1/2.9" | |
| Resolution | 720 × 540 | |
| Max. frame rate | 526.5 fps @720 × 540 Mono 8 | |
| Dynamic range | 73.6 dB | |
| SNR | 42.9 dB | |
| Gain | 0 dB to 24 dB | |
| Exposure time | UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono | Mono | |
| Pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Supports 1 × 1, 2 × 2 | |
| Decimation | Supports 1 × 1, 2 × 2 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). | |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply | |
| Power consumption | Typ. 2.4 W@5 VDC (USB3.0 provides power supply) | |
| Mechanical | Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") | |
| Weight | Approx. 80 g (0.18 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: -30 °C to 60 °C (-22 °F to 140 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | USB3 Vision, GenlCam | |
| Certification | CE, RoHS, KC | |
| EMVA data（typical） | Quantum efficiency | 58.3 % |
| Dark noise | 3.3 e-@12 bit | |
| Signal-to-noise ratio |
42.9 d
B |
|
| Saturation capacity | 19.6 ke- | |
| Dynamic range | 73.6 dB |
